Pneumatic shielding box

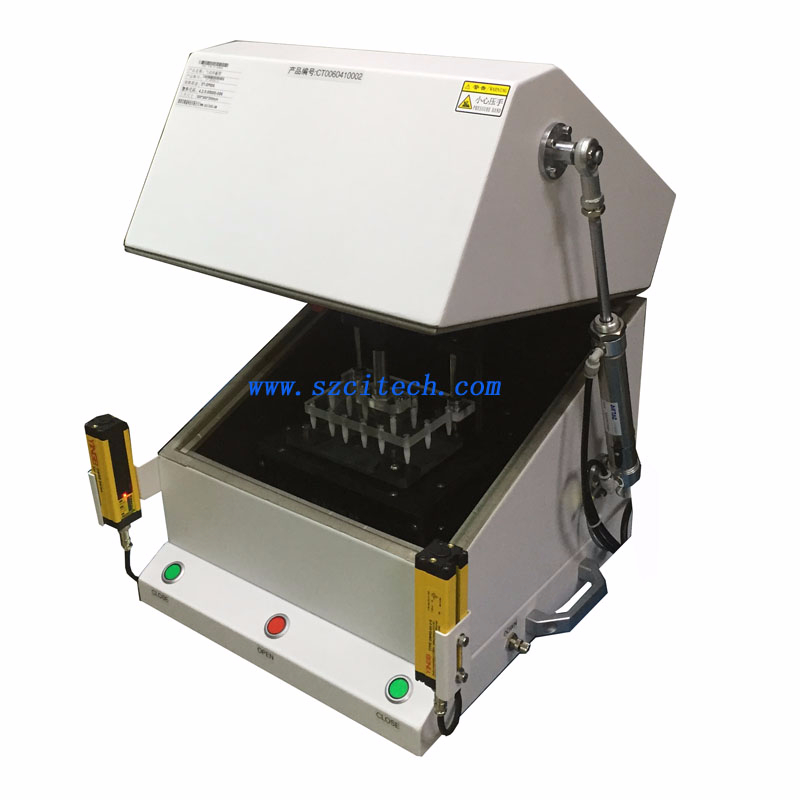

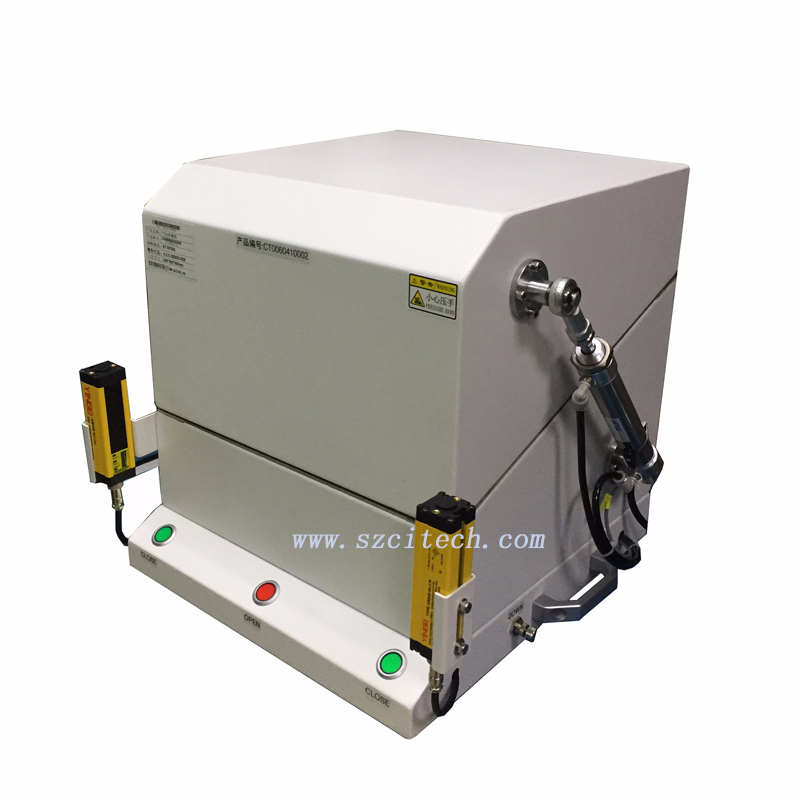

ST-SP006 RF SHIELDING BOX

Reliable high RF shielding up to12GHz

Pneumatic operation

Easily customizable to meet various test needs

EMI filters on all Data and Power lines

Dual pressure control and Lid down sensor for safety

order

Application

ST-SP006 RF Shielding Box provides RF isolation and signal connections necessary for mobile testing. With the RF coupling accessory and filtered control ports, it makes an ideal solution for testing mobiles and small RF devices on the test benches of R&D , service QC and manufacturing

Comprehensive wireless communications testing solutions , In the service of high-end technology, such as DAB/DMB、GSM、GPS、LTE、Wi-Fi、Wi-Max、 CDMA、CDMA2000、WCDMA、TD-SCDMA、3G/4G/5G mobile、WLAN、Bluetooth、PDA、Reflex、Wi-Fi Phone, UWB, Zigbee, RFID, TD-SCDMA, etc.

Features

? Reliable high RF shielding up to 12GHz

? Pneumatic operation

? Easily customizable to meet various test needs

? EMI filters on all Data and Power lines

? Dual pressure control and Lid down sensor for safety

RF SHIELD BOX `S Specification

Inner Dimension	(L)300* (W)300* (H)300 mm
Outer Dimension	(L)350 * (W)350 * (H)390mm
Shielding Isolation	800MHz~8.5GHz>70dB
Shielding Material	Microwave Absorber
Material	metal plate
Weight	approx.20kg
Surface Color	Grey white ( According to the customer request custom color)

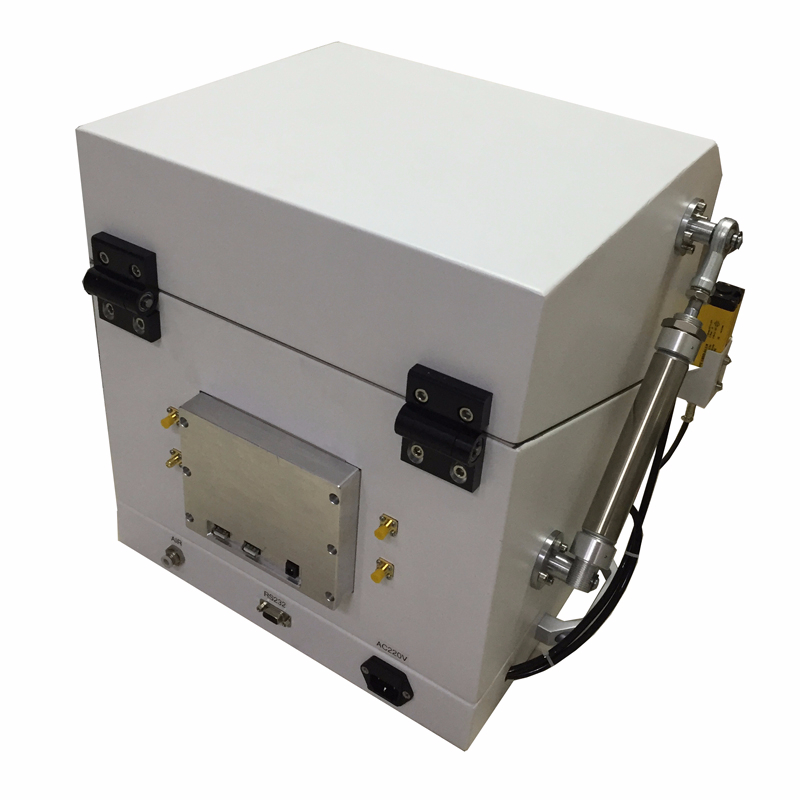

I/O Connectors	SMA-SMA4,USB2,DC*1（Can be customized according to needs）
